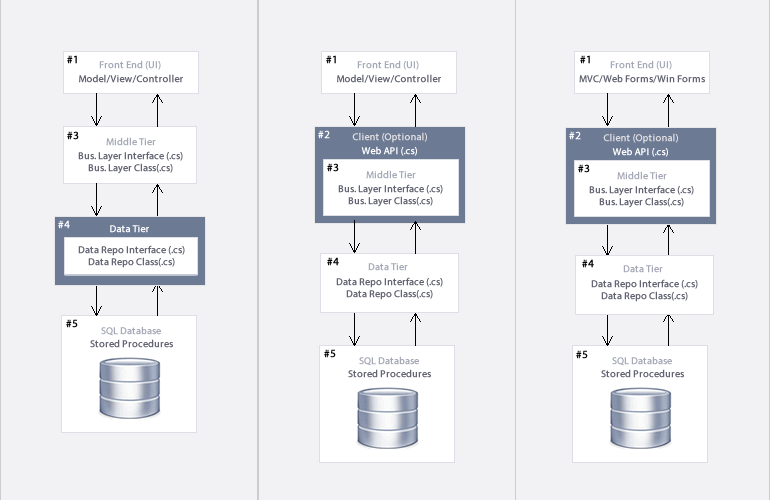

AspCoreGen 6.0 MVC generates code in a 3-tier (n-tier) architecture. A presentation tier (the client, UI),
middle tier (business layer), data tier (data repository), and the database scripts
such as stored procedures. Code is separated in different layers.
1.
Front End (UI - Presentation Layer) Views, Controllers, JavaScript, CSS, JQuery, and more.
2.
Web API (Middle-Tier, Optional). Optionally encapsulate calls to the Business Layer when generating Web API code.
3.
Business Layer Interface and Class Files (Middle Tier), Models, View Models, etc.>
4.
Data Repository Interface and Class Files (Data Tier) using Linq-to-Entities - Entity Framework Core or Ad-Hoc SQL.
5.
SQL Scripts (Stored Procedures).
The generated middle tier objects (and data tier objects) are generated in another application (class library project) and can also be consumed by other clients. Clients
could be a web form (.aspx), a win form, or a web service (.asmx, wcf), etc. Or
better yet you can choose to generate the Web API (optional) and get all the other clients to access this extra layer instead.
The middle tier encapsulates all calls to the data access objects (data tier) so that calling a CRUD (create, retrieve, update, delete) and other
operations are very easy and may only take one line of code for most parts. We made it even easier by generating and showing an example for each CRUD operation,
for each table in your database, so you just copy and paste a call from your chosen client.
The data tier encapsulates all calls to the database. These are calls using Linq-to-Entities, or Stored Procedures, or Ad-Hoc SQL. Linq-to-Entities, or
Stored Procedures, or Ad-Hoc SQL are also generated so you don't have to worry about writing T-SQL commands.
