Free ASP.NET 4.5 Web Forms Code Generator (AspxFormsGen 4.0 Express) Tutorial

Technologies Used: ASP.NET, C#, VB.NET, SQL 2008 or 2012, .NET Framework 4.5

Yes you read right! AspxFormsGen 4.5 Express is a free ASP.NET 4.5 Web Forms code generator software you can download absolutely free and with absolutely no catches. AspxFormsGen 4.5 Express generates ASP.NET Web Forms, Code Behind, Middle-Tier code, and Data Tier Code (with empty spots where you can enter your own code) by reading your MS SQL Database. It generates an ASP.NET 4.5 web site (so you know that all generated code works) in One Click.

Now that I'm done with my marketing spiel let's get on with the tutorial.

You will need the following things for this tutorial:


1. Download AspxFormsGen 4.5 Express here: https:www.//junnark.com/Products/AspxFormsGen4/DownloadExpress.

2. Install it. Just follow all the prompts. If you need a tutorial go here: https://junnark.com/Content/PDF/InstallationGuideForAspxFormsGen4.pdf

3. Open AspxFormsGen 4.5 Express and enter the following information shown in the snapshots below. Note: Use your database's username and password instead of the one shown below.

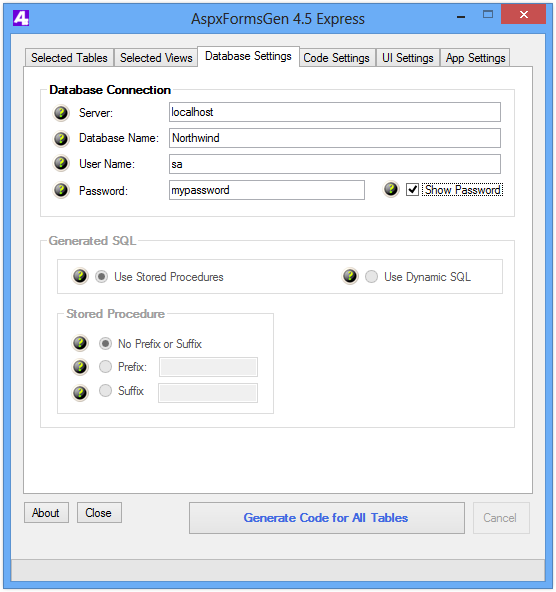

Database Settings

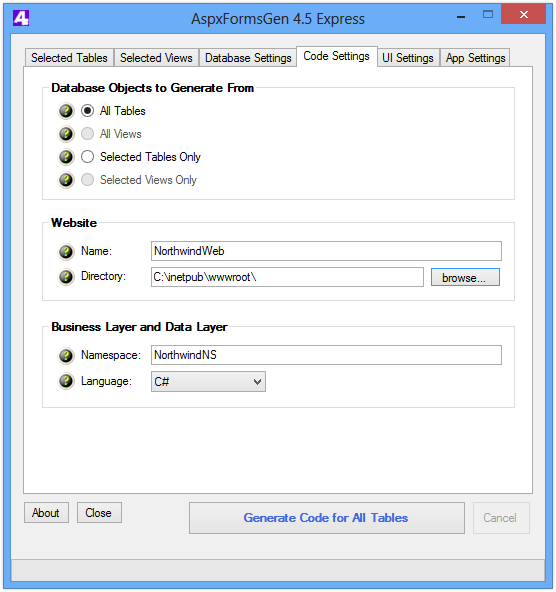

Code Settings

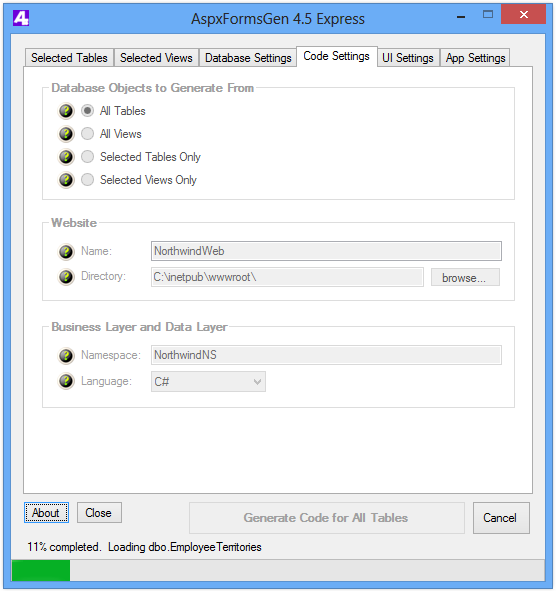

4. Click the "Generate Code for All Tables" button. AspxFormsGen 4.5 Express will start generating code and you will see a message once code generation is done.

Generate Code

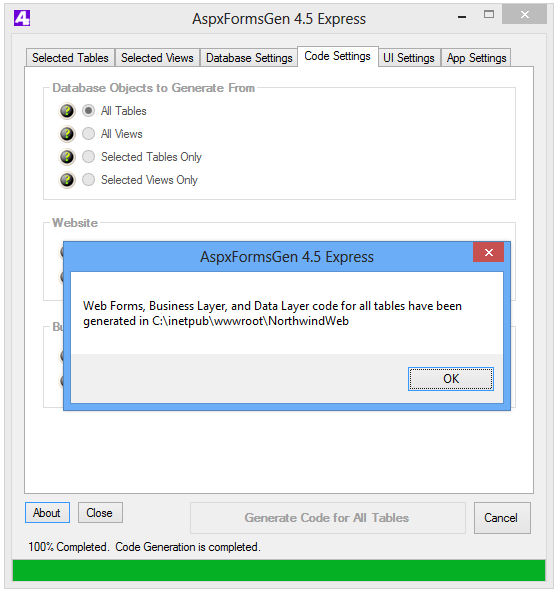

Done generating code


5. Close (or not) AspxFormsGen 4.5 Express. Then open Visual Studio 2010/2012, and then open the newly created Web Site.

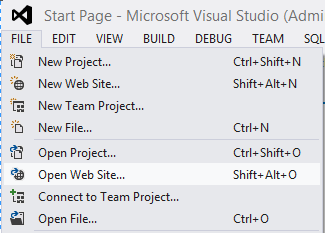

Open Web Site

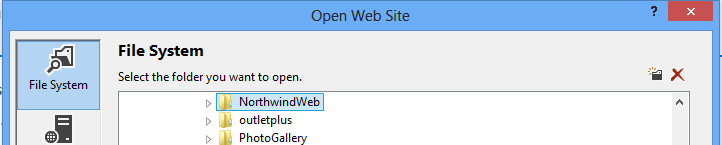

Open Web Site Dialog

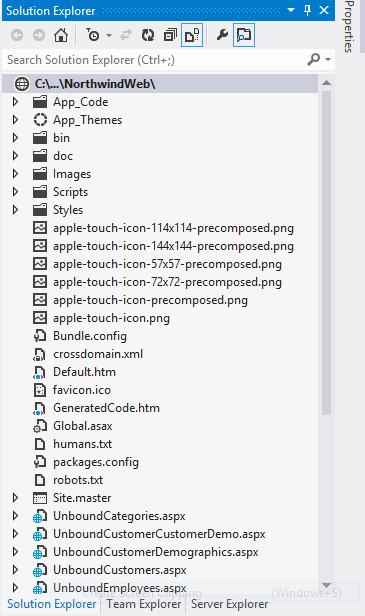

6. The Visual Studio Solution Explorer window shows all the generated ASP.NET code.

Web site in Solution Explorer


7. Run the web site by pressing F5.

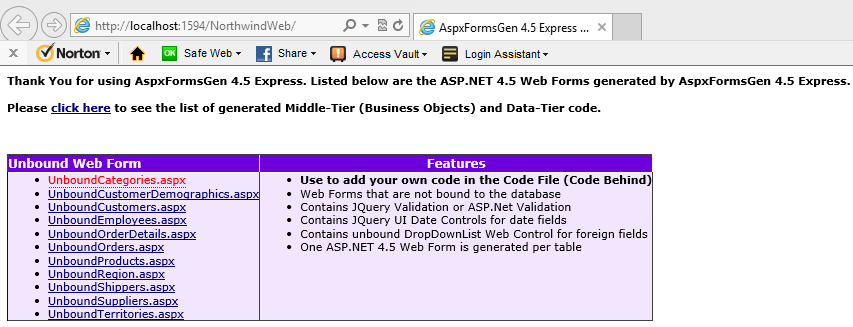

Home page, list of generated ASP.NET Web Forms


8. Click on one of the web page links, e.g. the UnboundProducts.aspx. You will notice that each field in the Products table are shown here. Foreign keys are also shown as a DropDownList web control. There's also validation, for example Product Name here is a required field. Note: AspxFormsGen 4.5 Express generates Unbound (web forms that are not bound to a database) web forms only.

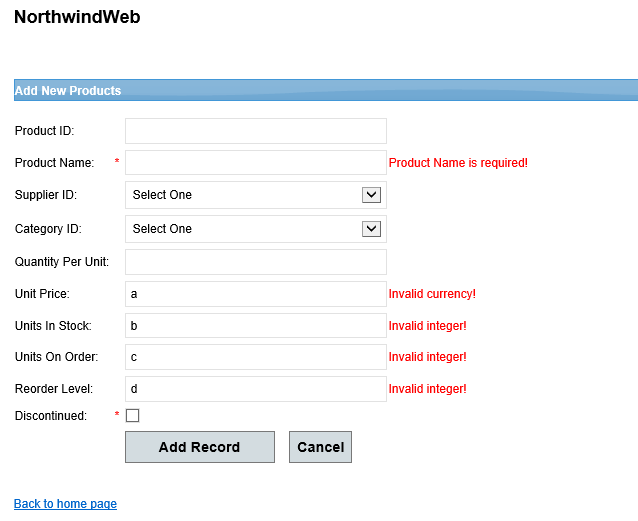

Products Unbound Page


9. What you've seen so far are the generated Web Forms and their respective Code Behind. AspxFormsGen 4.5 Express also generated the Middle Tier and Data Tier codes. To see the list of the generated the Middle Tier and Data Tier codes, go back to the home page (default.htm) and then click on the link on the top left corner of the web page.

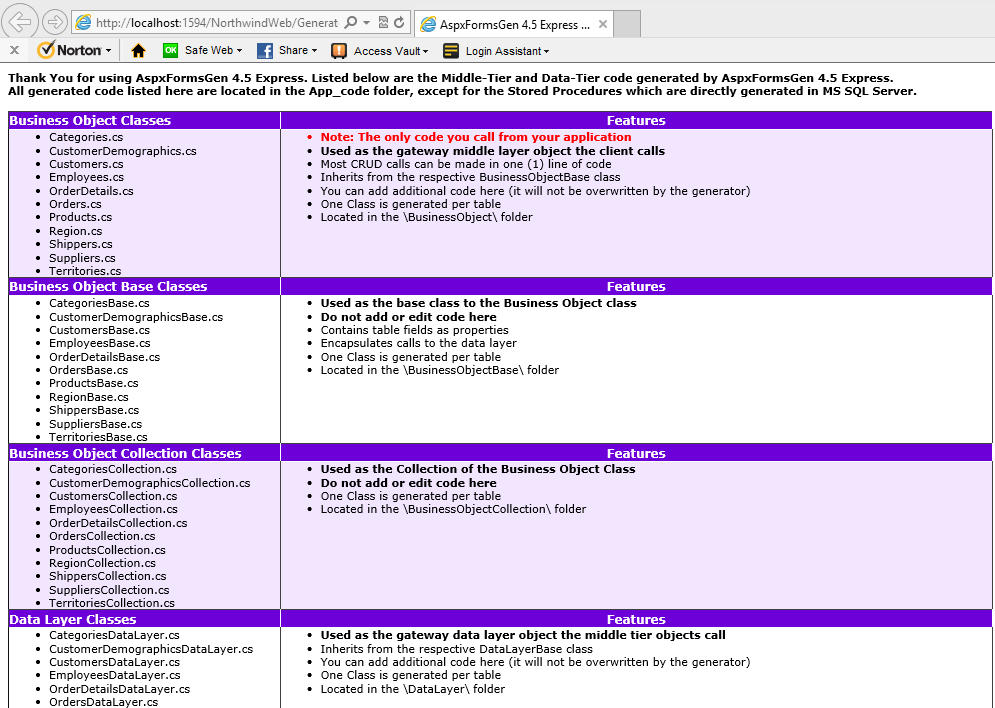

Generated Code


10. Close the web page and then go back to Visual Studio. The Middle-Tier (Business Objects) and Data-Tier (Data Layer) code is located in the App_Code folder. AspxFormsGen 4.5 Express also generated example code for each CRUD (create, retrieve, update, delete) operation it generated. Easily enough you can find all these code in the Example folder under the App_Code folder. Each table in your database should have a Class file.

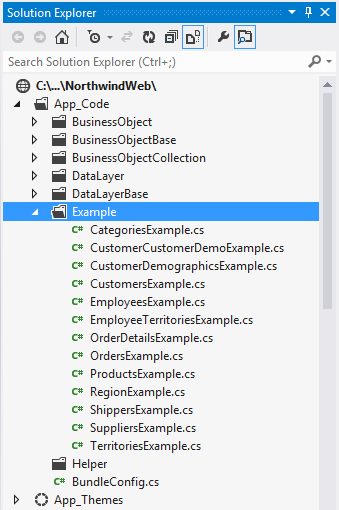

Example Folder


11. Since AspxFormsGen 4.5 Express does not generate code that binds the web forms to the database, let's bind the Web Form to the database by adding logic to the UnboundProducts.aspx (.cs) Code Behind file. Open the Class ProductsExample.cs (.vb) under the Example folder and then copy the code from the Insert method to the Code Behind file Products.aspx.cs (.vb) BtnAddRecord_Click event.

Note: We will use a Layering approach (3-tier, n-tier), so, the Web Form (Presentation Layer/Front End) will access the Products.cs (.vb) (Middle-Tier), and then the Product.cs will access the ProductsDataLayer.cs (Data-tier) code. The Data Layer code would then access our database (MS SQL).

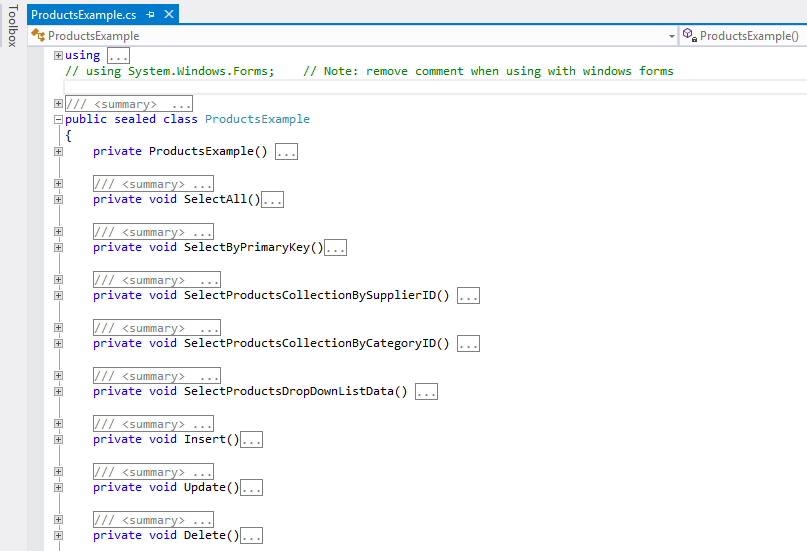

Products Example Class

Product Example Class

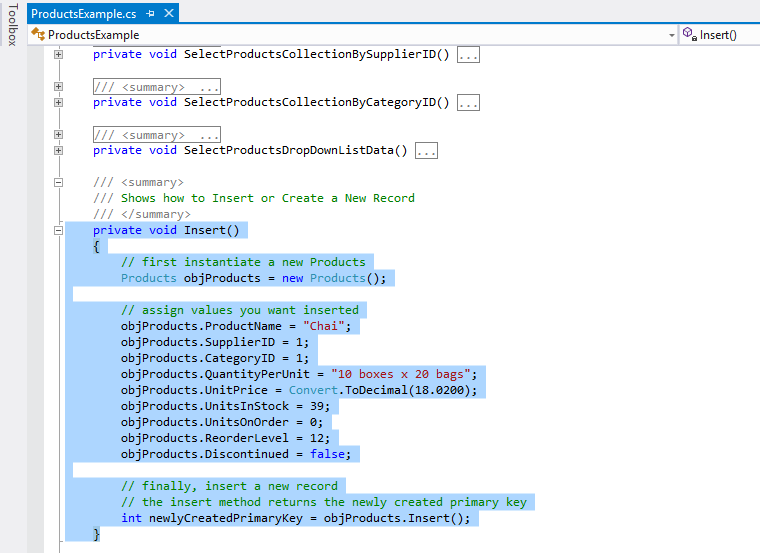

Products Example Insert Method

Product Example Insert Method


Products Example Insert Method

Product Example Insert Method


Products Unbound Web Form Code Behind File (ProductsExample.cs)

using System;

namespace NorthwindNS
{
    public partial class UnboundProducts : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }

        protected void BtnAddRecord_Click(object sender, EventArgs e)
        {
        }

        protected void BtnUpdateRecord_Click(object sender, EventArgs e)
        {
        }
    }
}




Products Unbound Web Form Code Behind File (ProductsExample.cs) after copying Insert code from the ProductsExample class

using System;
using NorthwindNS.BusinessObject;

namespace NorthwindNS
{
    public partial class UnboundProducts : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }

        protected void BtnAddRecord_Click(object sender, EventArgs e)
        {
            // first instantiate a new Products
            Products objProducts = new Products();

            // assign values you want inserted
            objProducts.ProductName = "Chai";
            objProducts.SupplierID = 1;
            objProducts.CategoryID = 1;
            objProducts.QuantityPerUnit = "10 boxes x 20 bags";
            objProducts.UnitPrice = Convert.ToDecimal(18.0200);
            objProducts.UnitsInStock = 39;
            objProducts.UnitsOnOrder = 0;
            objProducts.ReorderLevel = 12;
            objProducts.Discontinued = false;

            // finally, insert a new record
            // the insert method returns the newly created primary key
            int newlyCreatedPrimaryKey = objProducts.Insert();
        }

        protected void BtnUpdateRecord_Click(object sender, EventArgs e)
        {
        }
    }
}



12. Change the constant values to the respective Web Control's values. Note: Supplier ID and Category ID DropDownList have no values, make sure to add items to these controls.

// assign values you want inserted
objProducts.ProductName = TxtProductName.Text;
objProducts.SupplierID = Convert.ToInt32(DdlSupplierID.SelectedValue);
objProducts.CategoryID = Convert.ToInt32(DdlCategoryID.SelectedValue);
objProducts.QuantityPerUnit = TxtQuantityPerUnit.Text;
objProducts.UnitPrice = Convert.ToDecimal(TxtUnitPrice.Text);
objProducts.UnitsInStock = Convert.ToInt16(TxtUnitsInStock.Text);
objProducts.UnitsOnOrder = Convert.ToInt16(TxtUnitsOnOrder.Text);
objProducts.ReorderLevel = Convert.ToInt16(TxtReorderLevel.Text);
objProducts.Discontinued = CbxDiscontinued.Checked;



13. The code below accesses the ProductsDataLayerBase.cs (Data Layer) through the Middle Tier object.

BtnAddRecord_Click Event (Web Form/Presentation Tier) Calls the Middle Tier Insert() Method

// finally, insert a new record
// the insert method returns the newly created primary key
int newlyCreatedPrimaryKey = objProducts.Insert();


ProductBase.cs (Middle-Tier/Business Object) Calls the Data Layer Insert() Method

public int Insert()
{
    Products objProducts = (Products)this;
    return ProductsDataLayer.Insert(objProducts);
}


ProductDataLayerBase.cs (Data-Tier/Data Layer)

public static int Insert(Products objProducts)
{
    // add your code here
    throw new NotImplementedException();
}



14. You still need to add code in the ProductDataLayerBase.cs Insert method which will insert your passed values to the database.

Data Layer Code


Assign the Middle Tier values passed by the UI tier to whatever objects you have. Your objects could be an Entity Framework, or whatever you wish to use that will interact with your database. Or you can just buy the AspxFormsGen 4.5 Professional Plus so that you don't even need to worry about the datayer, it should generate this part as well as the respective Stored Procedures (sorry for the marketing spiel).

public static int Insert(Products objProducts)
{
    // add your code here instantiate your own object

    // add your code here
    // assign values to your own object
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.ProductName;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.SupplierID;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.CategoryID;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.QuantityPerUnit;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.UnitPrice;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.UnitsInStock;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.UnitsOnOrder;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.ReorderLevel;
    YourCodeToSaveValueToDbaseHere.Whatever = objProducts.Discontinued;

    // add your code here to insert to database
}


Last Words:

As programmers we develop for one project until we're done or get pulled to another project. This means using the same database over and over again, adding more tables or fields to existing tables and/or views, or updating them. The "One Click" feature becomes really handy the next time you generate code for the same database, all you have to do is click the "Generate Code for All Tables" button when working on the same database, and that's it. AspxFormsGen 4.5 Express is absolutely free, no need to register, no pop-ups asking you to buy the Professional Plus edition, no marketing/unsolicited emails whatsoever, yup - it's absolutely free.


Demonstration: Click here to see the demo

As always, the code and the article are provided "As Is", there is absolutely no warranties. Use at your own risk.

Happy Coding!!!
